Automatica Black Steel 20x50 Angle Steel Making Roll Forming Machine

Decoiler

1) Features:
Mandrel and basement are the two components of the decoiler, the mandrel is shrinking expanding by mechanical device manually, after fix coil to mandrel, then put back the coil with mandrel together to basement.
2) Power: None
3) Power of the open and closure of segments: Mechanical
4) Power of rotation of segment: Pull by forming system
5) Number of segment: 4
6) Range of segment expansion: 480 ~ 520mm
7) Height of center of the mandrel: 0.65m
8) Feeding speed with push: 0~30m/min
9) Approximate Size: 1.5 m * 1.1m *1.2 m
10) Speed control: By mechanical brake
11) Methods of operation: Manual.

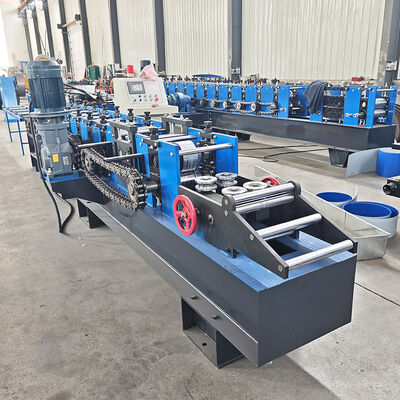

Material Feeder

1) Features: Ensure smooth& precise material feed.
2) Components: steel plate platform, two pitching rollers, position stopping block.
3) The coil is guided in the correct position and passed to the roll forming equipment.

Main colour coated roofing sheet machine part

1) Rollers: design by senior engineers with Auto-cad software, manufactured with 45# high grade steel by CNC machine tools and coated with hard chrome
2) Shaft:70mm manufactured with 45# high grade steel by CNC machine tools
3) Supporting frame: steel wallboard to guide the forming station bearing basement
4) The finished products will change if using different material and thickness
5) Driving of machine:by one inch chain

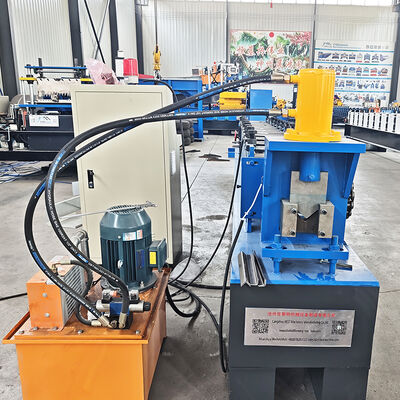

Hydraulic cutting

1) Function: cutting action is controlled by PLC. The main machine automatically stops and the cutting will take place. After the cutting, the main machine will automatically start.
2) Power supply: hydraulic station
3) Frame: welding steel frame
4) Stroke switch: non-contact photoelectric switch
5) Cutting before forming: cut the sheet after roll forming to required length
6) Length measuring: automatic length measuring
