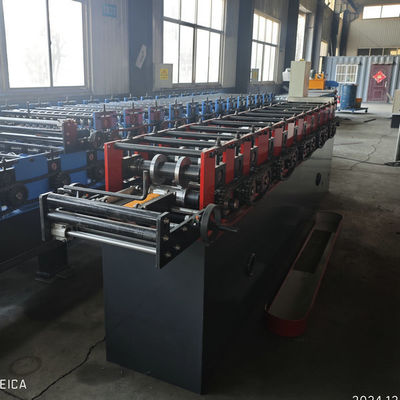

Semi Auto Angle Keel Profile/Corner Bead Steel Profile Roll Forming Machine

Main components of stud and track roll forming machine

Machine Components and Specifications

3 Ton Electric Uncoiler

1. Max.weight: 2TON
2. I.D of Coil: 460-560mm
3. Steel Plate and C beam welded
4. Function: The uncoiler is used to hold and uncoil the coils. This manual uncoil is unpowered. You need to manually adjust the uncoiler mandrel to tension the coil

Feeding and Guiding Device of Stud and Track Machine

1. Width Range:200-300mm
2. Feeding Type: Manual feeding
3. Guiding Type: Manual adjust
4. Function of Guiding: Avoid the deviation of the material

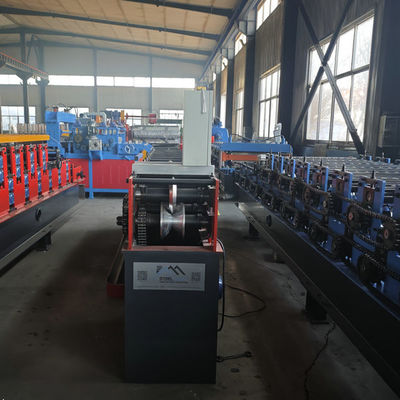

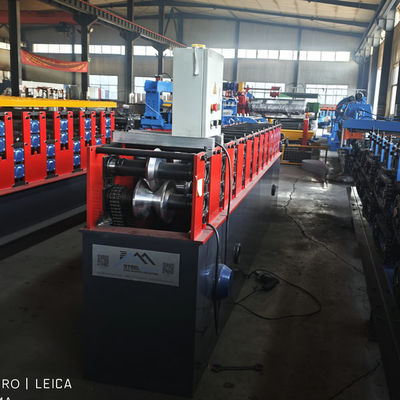

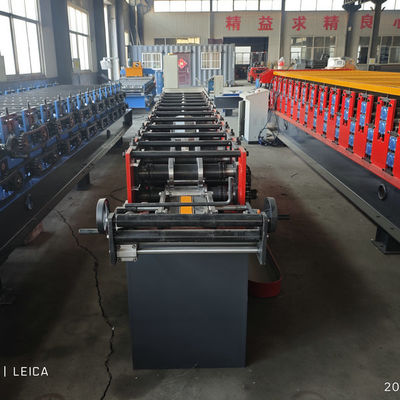

Metal Stud and Track Roll Forming Machine

1. Machine Structure: The main base use C beam welded, assemble the driven motor inside of the machine, the mill structure use whole plate welded, bottom bearing block assemble in the steel plate directly which is same as Taiwan design
2. Forming Speed: 12-15m/min
3. Machine Voltage and Frequency:415V, 50Hz, 3Phase
4. Material of Rollers: GCR15, CNC processing, HRC58-62, chromed 0.05mm thickness
5. Forming Steps:18
6. Material of Shaft: ASTM1045, lathe process and polish the out diameter
7. Diameter of shaft: 60mm
8. Material of Spacers: ASTM1045, wall thickness: 8mm, chromed and hardness treatment.
9. Driven Motor: Chinese Guomao Brand, 5.5KW
10. Transmission: By gears
11. Machine Side Wall Panel:18mm
